Non-Destructive Testing (NDT) is used to examine materials, components, equipment and structures without causing damage to the item being inspected. ITAC Safety provides professional NDT Services in Dubai and Abu Dhabi for businesses that require defect identification, thickness measurement and condition assessment.
Our Non Destructive Testing Services in Dubai and Abu Dhabi include Visual Testing including Direct & Remote Method Inspection, Dye Penetrant Testing, Magnetic Particle Inspection, Ultrasonic Thickness Inspection and Infrared Thermography Inspection.
What Is NDT Inspection?
NDT is a group of inspection techniques used to evaluate materials and components without permanently damaging them. The right method depends on the material, component, suspected defect, accessibility and inspection objective. NDT helps organizations identify defects, monitor material condition and support maintenance and quality control.
Why Is NDT Inspection Important?
Equipment and structures can suffer wear, corrosion, cracking and thickness reduction during service. NDT inspection helps to:
- Identify visible, surface and near-surface defects
- Measure material thickness and detect wall thinning or corrosion
- Examine difficult-to-access areas
- Identify abnormal thermal patterns
- Support preventive maintenance and quality control
- Maintain accurate inspection records
Types of NDT Inspection Services

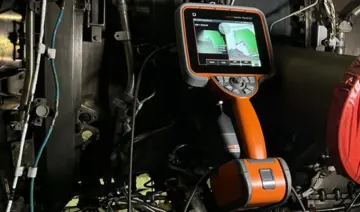

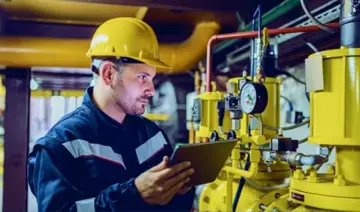

1. Visual Testing including Direct & Remote Inspection in Dubai and Abu Dhabi
Visual Testing is a basic inspection method, often used before more specialized NDT techniques. It can identify:
- Surface cracks, corrosion and wear
- Physical damage and deformation
- Damaged weld areas and loose components
- Leakage indications and signs of overheating

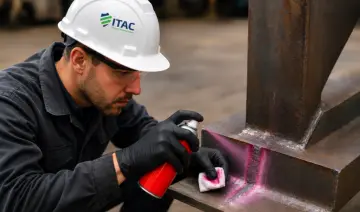

2. Dye Penetrant Testing (DPT) in Dubai and Abu Dhabi
Dye Penetrant Testing, also known as Liquid Penetrant Testing (LPT) in UAE, detects surface-breaking defects on non-porous fabricated, machined, cast or welded components. A typical process includes:
- Cleaning the surface and applying penetrant
- Allowing penetration time and removing excess penetrant
- Applying developer and examining for indications
- Recording and evaluating results
We also provide Fluorescent Penetrant Inspection (FPI) in UAE, which uses fluorescent materials and suitable lighting for improved detection.

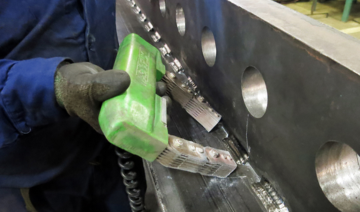

3. Magnetic Particle Inspection (MPI) in Dubai and Abu Dhabi
MPI detects surface and near-surface defects in ferromagnetic materials. The component is magnetized and magnetic particles are applied; particles gather around defects to form visible indications. Magnetic Particle Testing Services in UAE are used for:
- Welded and fabricated components
- Forged and machinery components
- Selected structural components
Fluorescent Magnetic Particle Inspection in UAE is also available for improved visibility of indications.

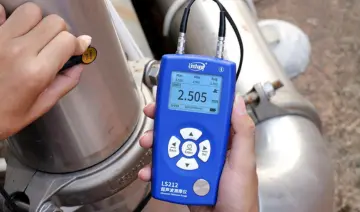

4. Ultrasonic Thickness Testing in Dubai & Ultrasonic Thickness Gauging (UTG) in Abu Dhabi
Ultrasonic Thickness Testing uses sound waves to measure material thickness. It helps determine:
- Material and remaining wall thickness
- Localized or general wall thinning
- Areas requiring further investigation
Our Ultrasonic Thickness Measurement Services in UAE include Tank & Pipe Thickness Testing in UAE for tanks, pipes, vessels and structural sections, supporting long-term condition monitoring.

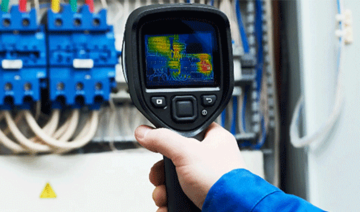

5. Infrared Thermography Inspection in Dubai and Abu Dhabi
Thermal imaging identifies temperature patterns across equipment and surfaces as part of preventive maintenance. Our Thermal Imaging Inspection Services in UAE include:
- Electrical Panel Thermography in Dubai and Abu Dhabi: Inspection of electrical panels, switchboards, distribution boards and connections to identify abnormal heat patterns.
- Building Thermography Survey in Dubai: Identification of heat-loss areas, insulation issues, thermal anomalies and possible moisture-related patterns in building elements.
- Mechanical Equipment Thermography: Condition monitoring of mechanical equipment to identify abnormal temperature variations.
Our NDT Inspection Process
- Step 1 – Requirement Assessment: Review of equipment, location and inspection objectives.
- Step 2 – Method Selection: Selection of the right NDT technique based on material and accessibility.
- Step 3 – Site Inspection: Inspection performed using appropriate material, equipment and procedures.
- Step 4 – Evaluation: Findings identified and assessed against applicable criteria.
- Step 5 – Reporting: Results and observations documented for the client.
Industries We Serve
- Oil and gas, petrochemical and power
- Construction and infrastructure
- Manufacturing and engineering
- Marine and industrial facilities
- Commercial facilities and maintenance operations
Why Choose ITAC Safety for NDT Inspection?
- Competent Inspection Engineers.
- Wide range of NDT methods under one provider
- Services tailored to your equipment and site conditions
- Accurate defect identification and thickness measurement
- Detailed inspection documentation
- Support for preventive maintenance planning
- Service across Dubai, Abu Dhabi and the UAE
Whether you need NDT Services in Dubai, NDT Services in Abu Dhabi or specialized testing across the UAE, ITAC Safety can support your requirements. Contact us today to request an NDT inspection quote. Follow us on LinkedIn for latest updates.
